MILK MONITOR AUTOMATIC TAKEOFF SYSTEM
Automatic Cluster remover
The Milk Monitor ACR is a robust easy to operate controller with built in pulsation and stimulation. It is capable of handling standard operations and include advanced features such as; Networking, Remote start, Soft Start, Soft Takeoff, Milk Let Down Delay among many others. Can be used in Herringbone, Parallel and Rotary Milking Systems.
Benefits
Animal is not overmilking
Stimulation adapted to milking stage
Detects milk flow via a resistive sensor, and automatically takes off the milker when the animal has finished milking
Can be used on animals that are difficult to milk
Milking can be started via an auto start cylinder or an external button
Ease of operation
Allows the operator to pick up the milker and offer it up to the teats before turning on the vacuum
Allows the vacuum in the milker to reduce before pulling the unit off
Prevents premature take off when the animal is slow to start milking
Visual indication that the animal had finished milking
Indicates unit has been removed or kicked off before milking has completed
Prevents wear and tear
Easy programming of the entire parlour from a single unit
User friendly
Features
Built in Pulsation & Stimulation
Multiple Stimulation options (Initial, Final, Initial & Final)
Automatic Removal
Manual Option -
Remote Start Option
Infrared interface to drop and raise cluster automatically on rotary systems
Soft Start
Soft Take Off allows the vacuum in the milker to reduce before pulling the unit off
Milk Let Down Delay - Adjustable delay
End of Milk Indicator - visual indication that the animal had finished milking
Premature Detach Indicator - visual indication to show unit has been removed or kicked off before milking has completed
Time out to “sleep mode” when not in use
Network Programmable for fast and easy programming of the entire parlour from a single unit
Easy setting up with remote programming handset
24 V DC
Components

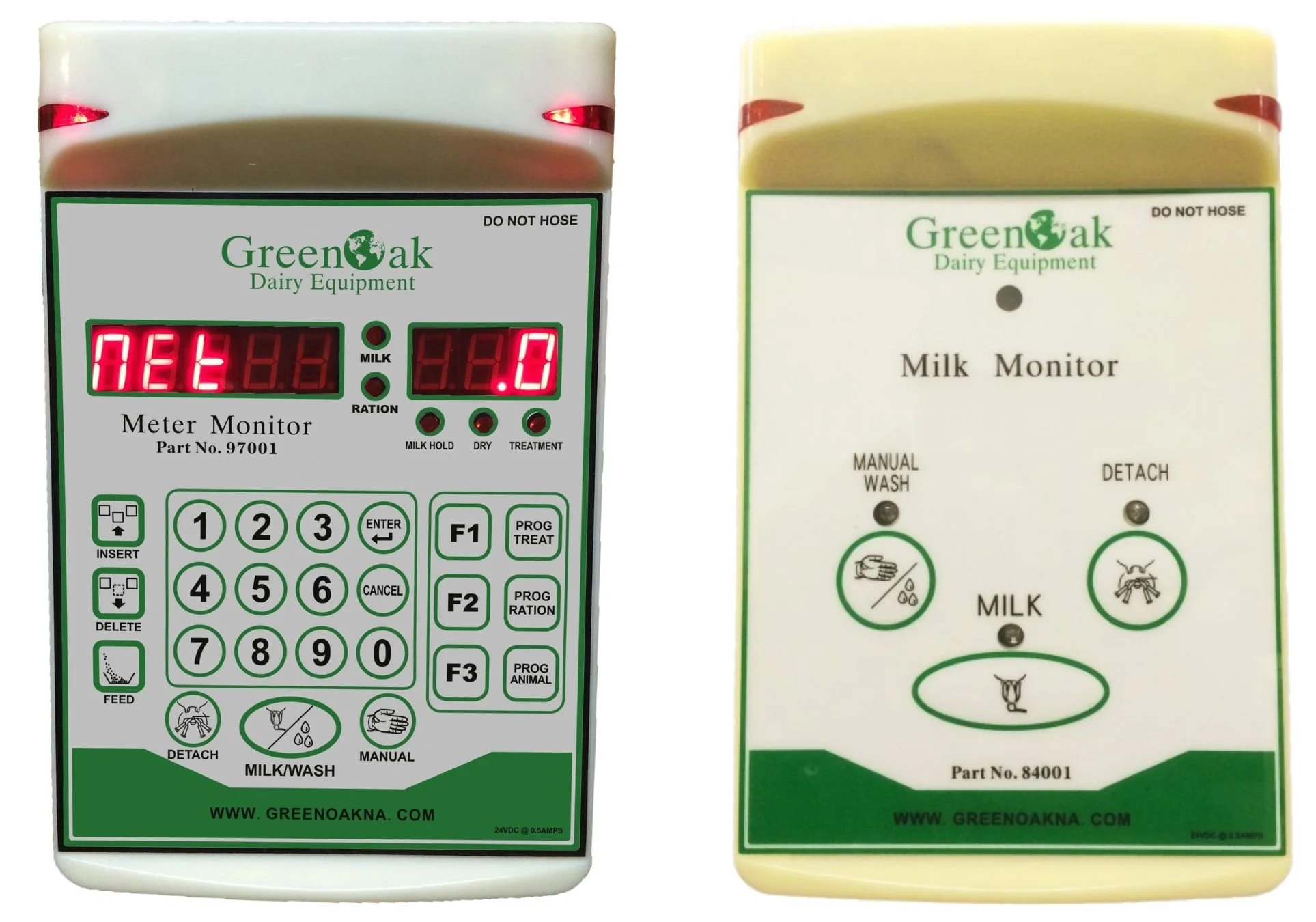

Milk Monitor Automatic Cluster Remover
The Milk Monitor ACR is a robust easy to operate controller with built in pulsation and stimulation. It is capable of handling standard operations and include advanced features such as; Networking, Remote start, Soft Start, Soft Takeoff, Milk Let Down Delay among many others.
Milk Sensor and Vacuum Shut-OFf
This beautifully simple sensor is able to monitor milk flow by sensing the resistance of the liquid and provide continuous feedback to the Milk Monitor which is able to use that feedback to dynamically alter the milking either by increasing stimulation or going into its take off sequence.

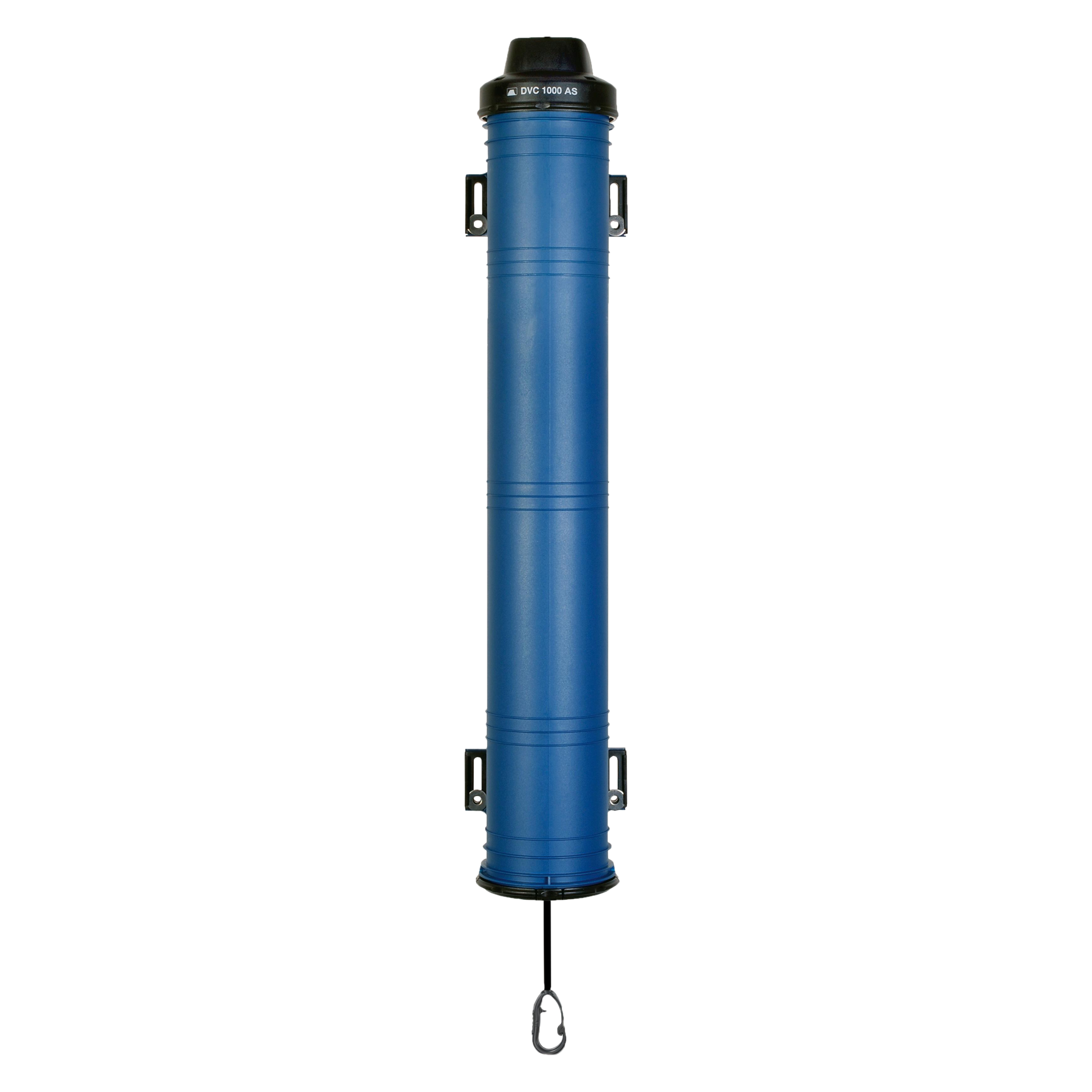

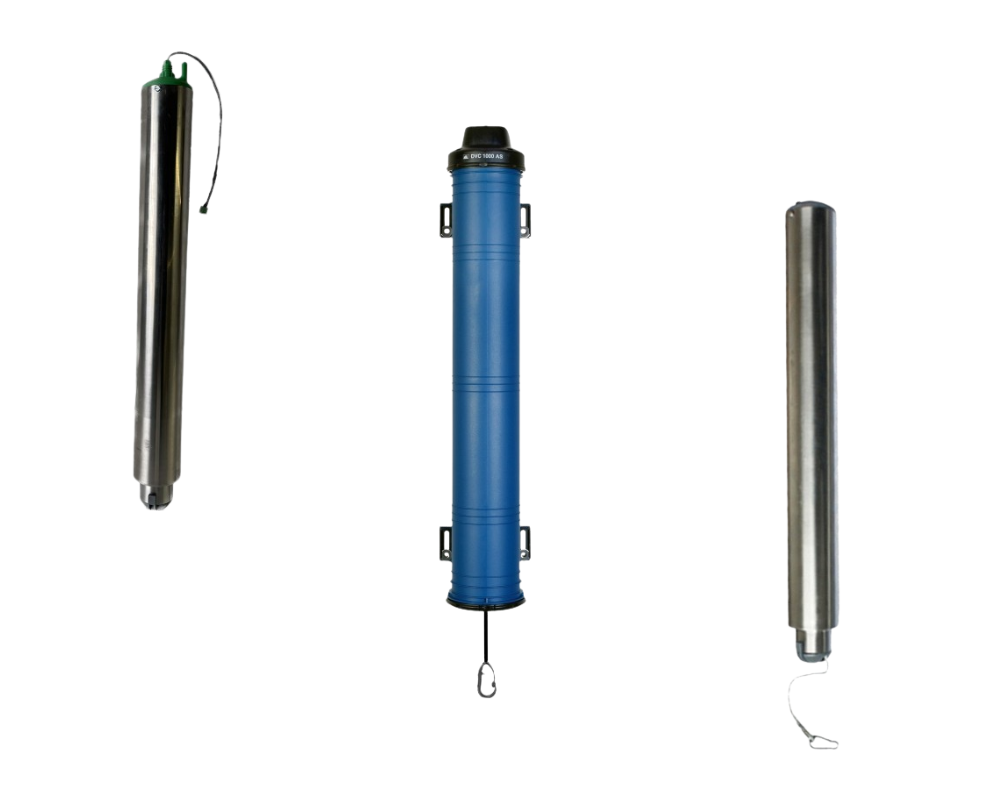

TakeOFF Cylinders
If the Milk Monitor is the brains of the system, the Take Off Cylinder is its arm, these cylinders have a double pulley system that allows them to gently retract the cluster once the vacuum to the milking unit has been turned off. You have the choice of our robust Stainless Steel Vacuum Cyclinder or the Auto Start Version which incorporates a labour saving auto start switch within the unit itself, allowing the unit to automatically go into milking when the operator lifts the milking cluster.

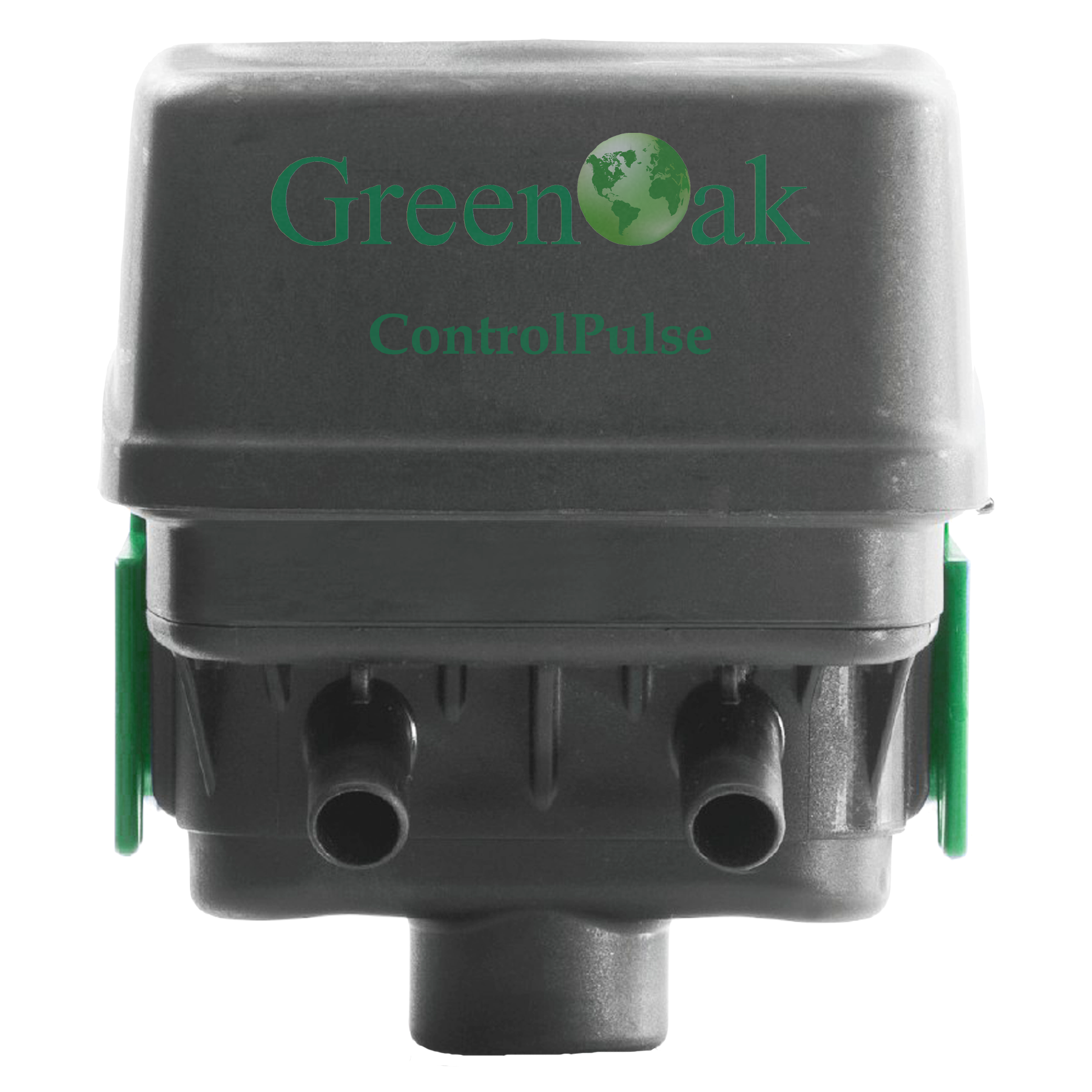

Control Valve and Pulsator
With the new ControlPulse unit, Greenaok broke from the tradition of having different designs for control valve and pulsators, this innovative unit can be used either as a Control Valve or a Pulsator, increasing interoperability and reducing the amount of spares that have to be kept on hand.
